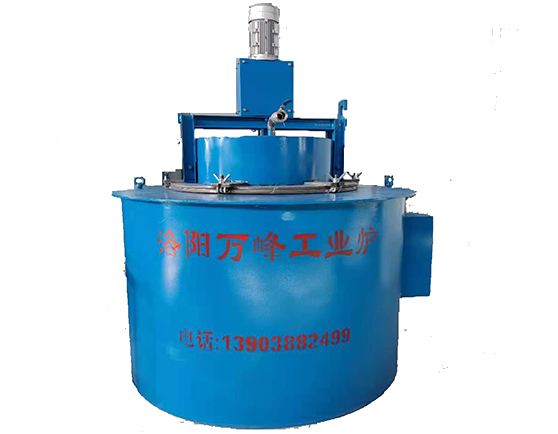

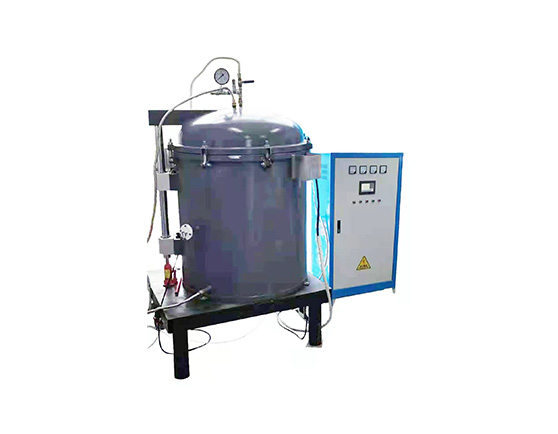

Vacuum Resistance Furnace

Application:

Vacuum Resistance Furnace is mainly used for sintering of refractory metal materials, metal brazing and annealing of electrical materials, heat treatment of tool steel, die steel, structural steel, stainless steel and metal coating.

Send E-mail Get Price

Vacuum Resistance Furnace is mainly used for sintering of refractory metal materials, metal brazing and annealing of electrical materials, heat treatment of tool steel, die steel, structural steel, stainless steel and metal coating.
After vacuum heat treatment, the workpiece surface is not oxidized and decarbonized, small deformation, good mechanical properties. Vacuum resistance furnace can achieve almost all heat treatment processes such as quenching, tempering, annealing, carburizing, nitriding, metal cementing, etc.
Vacuum resistance furnace can also be used gas quenching, oil quenching, salt quenching, water quenching and high melting point metal materials, super hard tools and powder metallurgy materials sintering, stainless steel, high temperature alloy brazing, bonding, polycrystalline silicon melting, etc. Vacuum resistance furnace can be semi-continuous or continuous type.

Parameter:

Model	WFVR
Chamber size(WxLxH)mm	Customized size
Type	Vacuum Resistance Furnace
Furnace structure	Chamber material, temperature controller system, heating element, furnace shell and other assistant parts
Max temperature	1700℃
Continue Operating Temp.	1600℃
Power supply	Customized power
Heating element	High quality MoSi2 Rod
Chamber material	High temperature polycrystal alumina ceramic fiber material
Temperature precision	±1℃
Thermocouple	B type
Temperature controller	YUDIAN intelligent microcomputer PID controller can program 30 segments
Electronic component	DELIXI make
Heating rate	≤ 25℃/min ( suggest 15℃/min for longer life using of furnace )
Safety protection	Overheat and thermocouple-break alarm
Certification	ISO9001 CE SGS
Furnace shell	high quality cold-rolled steel sheets CNC processing
Insulation	High quality thermal insulation material to ensure a good uniformity
Accessories	One pair of high temperature furnace gloves
Accessories	One pair of crucible
Optional	Paperless recorder
	Stainless steel exhaust chimney
	Alumina crucible
	Vacuum Pump & Flowmeter
