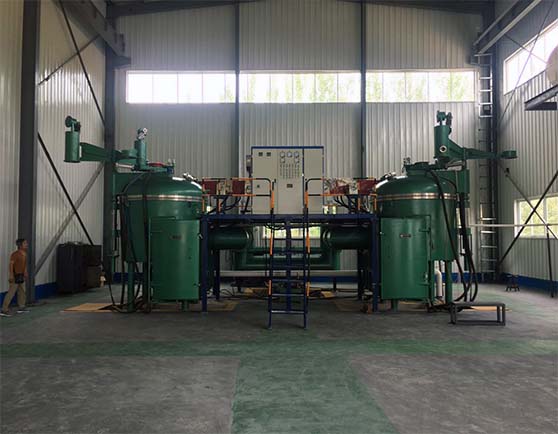

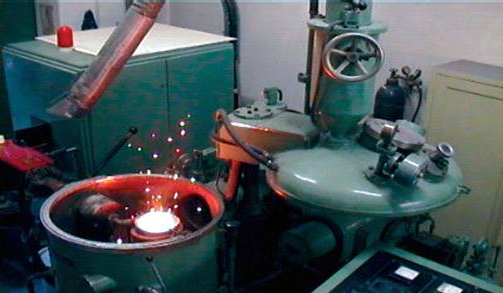

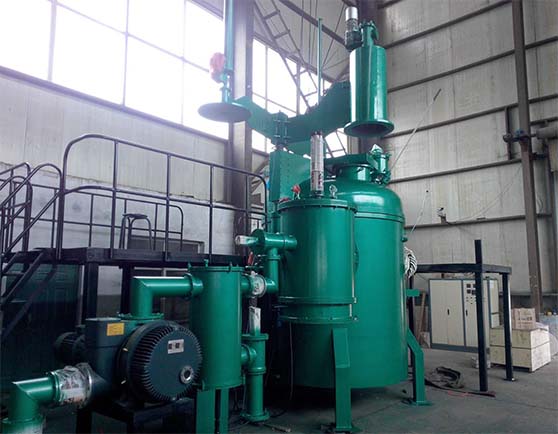

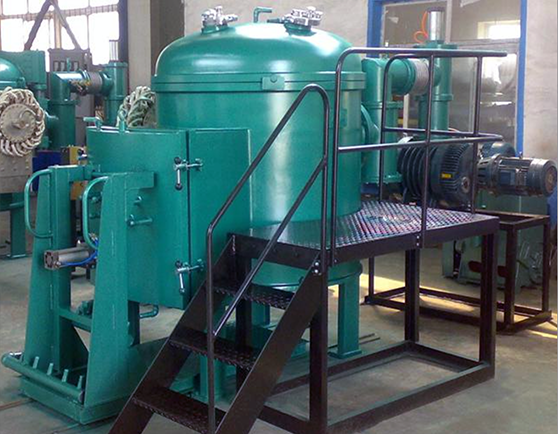

Induction Vaccum Melting Furnace

Application:

Vacuum induction melting furnace (VIM) is a complete set of vacuum smelting equipment which melts metal under vacuum condition ,using the principle of medium frequency induction heating.

Send E-mail Get Price

Vacuum induction melting furnace (VIM) is a complete set of vacuum smelting equipment which melts metal under vacuum condition ,using the principle of medium frequency induction heating.
VIM is suitable for nickel-based alloy, special steel, precision alloy,neodymium iron boron, dysprosium metal, active metal, high temperature alloy, special materials, magnetic materials in vacuum or protective atmosphere for melting and casting.

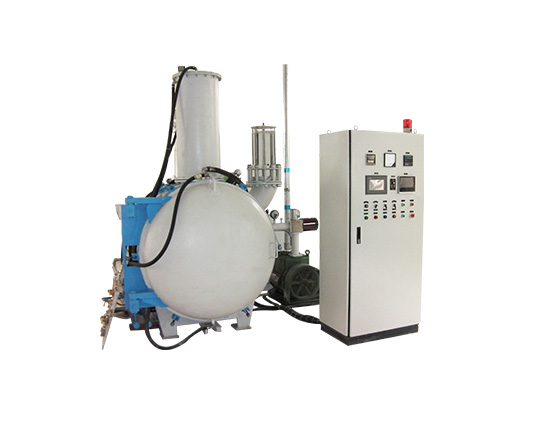

This process can be used to refine high purity metals and alloys.The furnaces divided into two types: vertical and horizontal.

Specification:

Model	WFVM0.01	WFVM0.025	WFVM0.05	WFVM0.1	WFVM0.2	WFVM0.5
Capacity(kg)	10	25	50	100	200	500
Working temp(℃)	1700	1700	1700	1700	1700	1700
Ultimate vacuum(Pa)	6×10-3
Leakage(Pa/h)	3	3	3	3	3	3
Power(kw)	40	50-100	100	160	200	500
Mid-freq rate(HZ)	4000	2500	2500	2500	2500/	1000
Mid-freq rate(HZ)	4000	2500	2500	2500	1000	1000
Water consumption(m³/h)	2.4	3	3	9	13.5	40
Water pressure(Mpa)	0.3	0.3	0.3	0.3	0.3	0.3
Dimension(m)	532	4.842.5	9.853.2	9.85.55	118.74.6	12.586
