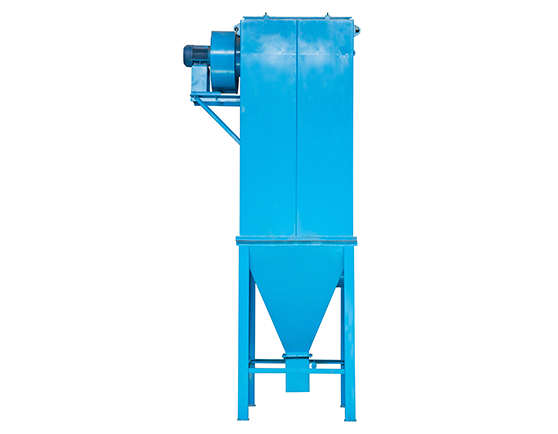

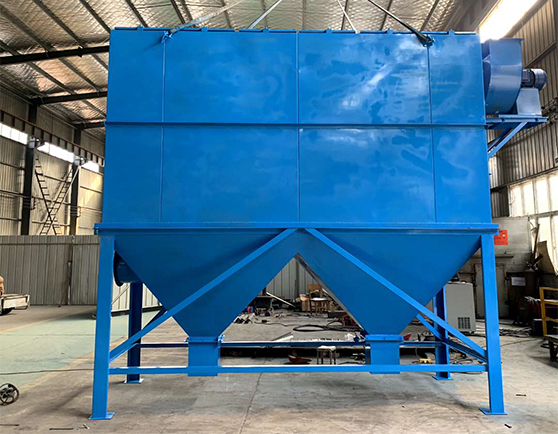

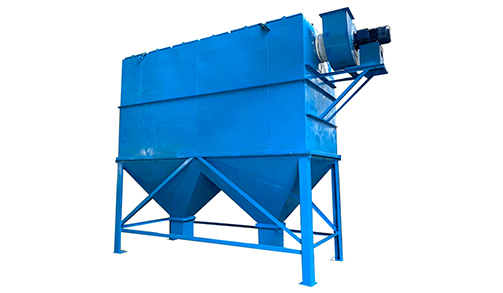

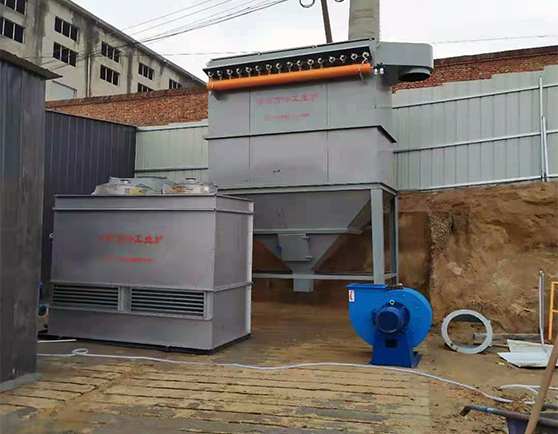

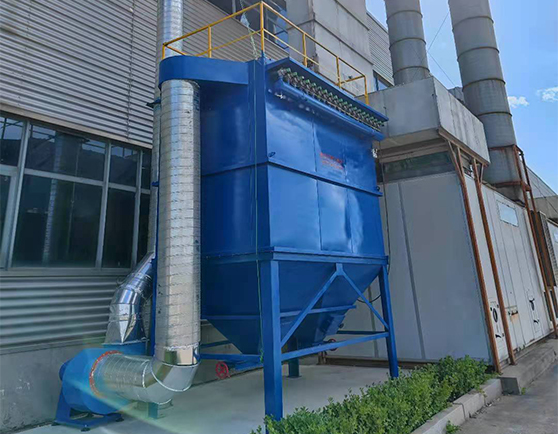

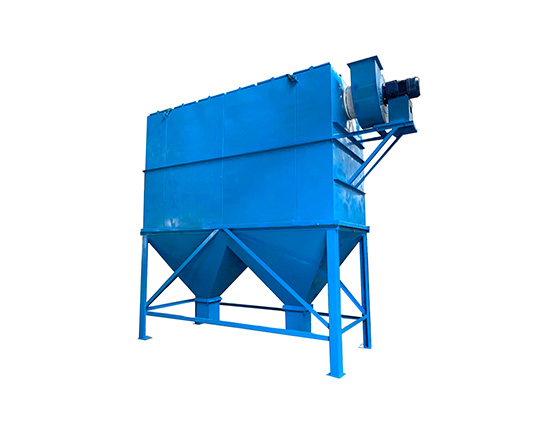

Bag Filter Dust Collector

Application:

Bag filter dust collector are a giant centralized industrial dust control equipment used for collection and filtration of harmful, nuisance dusts in  metal melting and other Manufacturing Industries.

Send E-mail Get Price
share:

Specification:

  • In general Bag filter Dust collection system will have one or large number of hoods capturing dusts at different sources. Ducting connecting all hoods and transports the dust laden gas / air to centralized bag filter.
  • The dusted air is made to pass through large array of filter bags.The dusts get deposited over bags and only clean air passes on other side.
  • Blower creates the required suction pressure at hood (capturing), ducts (transportation) and across dust collectors (filtration) and a positive pressure in chimney to exhaust the cleaned air at a allowable altitude.

Parameters:

Model

Filter Bag Qty

(pcs)

Dimension

(L*W*H mm)

Solenoid Valve Qty

(pcs)

Filtering Area

(m2)

Air volume

(m3/h)

Fan Power

(kw)

Filting Efficiency

(%)

Filter Bag Size

(mm)

 Operation

Working Temperature

(℃)
DMC-24 24 1200*760*4200 4 19.2 1382.4 5.5 ≥99.8% Φ133*1900 PLC Automatic Control; Manual ≤130
DMC-36 36 1200*1200*4200 6 28.8 2073.6 5.5
DMC-48 48 1200*1500*4200 6 38.4 2764.8 5.5
DMC-64 64 1500*1500*4300 8 51.2 3686.4 7.5
DMC-80 80 1800*1500*4200 8 64 4608 7.5
DMC-96 96 2100*1800*4500 8 76.8 5529.6 11
DMC-100 100 1800*1800*4500 10 80 5760 11
DMC-120 120 2100*1800*4800 12 96 6912 15
DMC-130 130 2280*1800*4800 13 104 7488 15
DMC-140 140 2440*1800*5000 14 112 8064 15
DMC-160 160 2780*1800*4800 16 128 9216 18.5
DMC-200 200 3480*1800*4800 20 160 11520 22
DMC-300 300 4180*1970*5000 25 240 17280 37

Features and Advantages:

Automated self-cleaning of filter bags

Designed to handle streams with granular particulates

Hoppers collect granules which can be valuable in some applications

Continuous operation possible

High filter rates

No internal moving part

High ROI due to collected product

Low maintenance requirements

Fast top removal of bags – working at the clean air side

Dependable solid-state timer controls

Weather proof – all welded construction

Custom built, turnkey systems

Cyclone recovery option available

Dust pre-separator – baffle plate

Integration with other pollution control systems

Multiple filter stock materials

Off-line or continuous alternative bag cleaning

Related Products

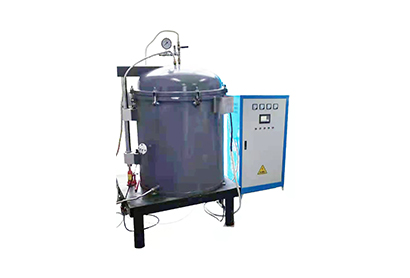

Vacuum Resistance Furnace

Vacuum Resistance Furnace

Vacuum Resistance Furnace is mainly used for sintering of refractory metal materials, metal brazing and annealing of electrical materials, heat treatment of tool steel, die steel, structural steel, stainless steel and metal coating.

Read More

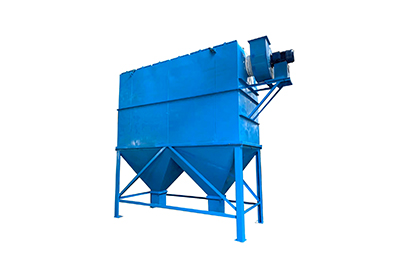

Bag Filter Dust Collector

Bag Filter Dust Collector

Bag filter dust collector are a giant centralized industrial dust control equipment used for collection and filtration of harmful, nuisance dusts in various industries like metal melting and smelting industry, cement plants, Fertilizer Industries, Woodworking & Glass manufacturing industries and other Manufacturing Industries.

Read More

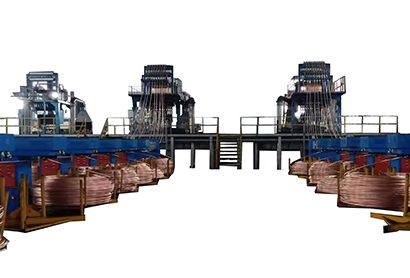

Upward Continuous Casting Machine

Upward Continuous Casting Machine

The small upcasting continuous casting machine is the good solution for copper/gold/aluminum/steel rod, tube, sheet production with small investment. Our CCM is stable in furnace running and good drawability in casting.

Read More
Horizontal Continuous Casting Machine

Horizontal Continuous Casting Machine

Resistance furnace is an industrial furnace that uses electric current to heat the electric heating element or heating medium in the furnace ,so as to heat the workpiece or material.It is a heating furnace that uses electric current to generate heat energy through resistive materials.

Read More

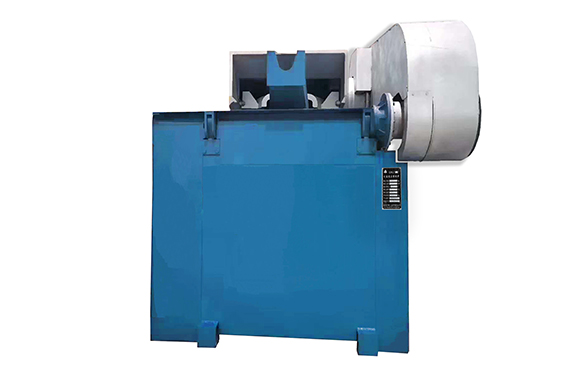

Induction Melting Furnace
